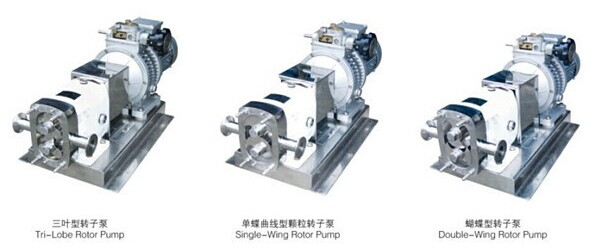

• Rotor pump
  •   hot:1101


  • QMZZ

    1.Food Beverage：cream,Chocolate,syrup,cheese,liquid malt,beer,carbonated drink，honey,toothpaste,soy sauce,plant oil,animal oil.
    2.fruit concentration:pudding,jam,jelly,tomato ketchup.
    3.fat product：fat and lipa etc.
    4.cosmetic ：face cream，detergent，hair gel，perfume oil
    5.medicine ：paste,emulsion,pill paste,amylaceum and injection etc
    6.chemical：fuel，fat，dissolvant，resin，polymer，gasoline and other chemical material
    7.food：transfer wine at bar
    8.textile：transfer Synthetic fiber liquid,mucus,fuel,printing ink,liquid nylon powder.
    9.pharmacy：transfer black liquor.

    No Model
         		 capacity
    (L/R)    		 speed
    (R/Min)    		 Suggest speed
    (rpm)    		 Flux
    (L/H)    		 Power
    KW
    1 QM-I-45 0.05 200-600 200-400 540-1080 0.75
    2 QM-I-52 0.09 200-600 200-400 970-1940 1.5
    3 QM-I-70 0.17 200-600 200-400 1800-3600 2.2
    4 QM-I-78 0.31 200-600 200-400 3300-6600 4
    5 QM-I-88 0.5 200-600 200-400 5400-10800 5.5
    6 QM-I-97 0.65 200-600 200-400 7000-14000 7.5
    7 QM-I-110 1.05 200-600 200-400 5670-22680 11



×
×
