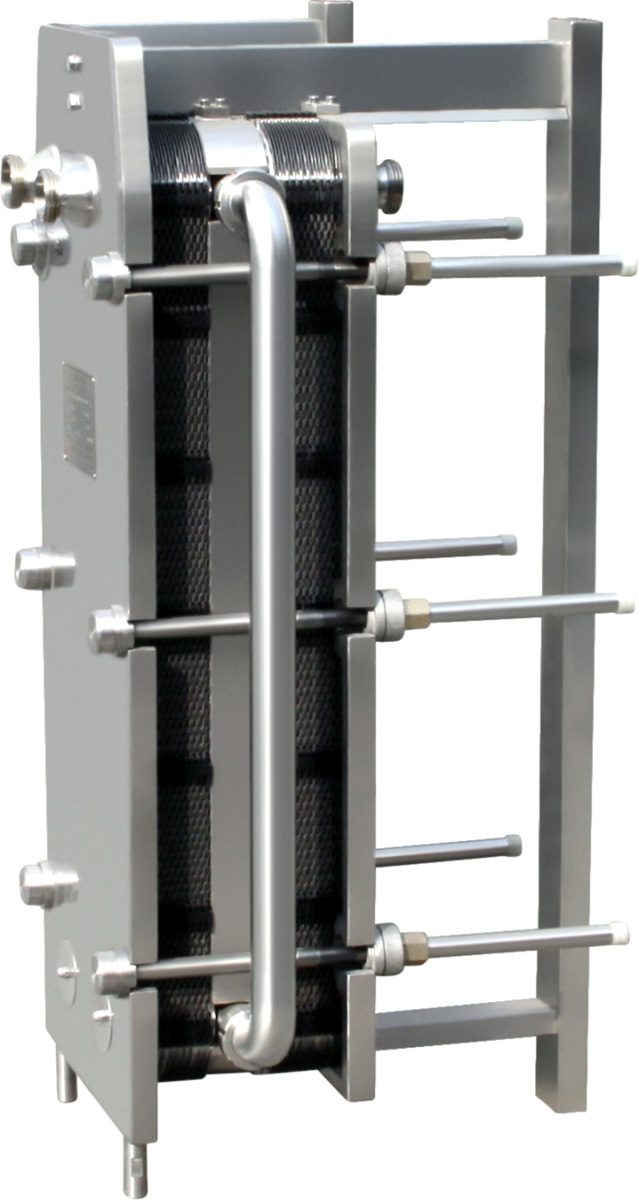

  • Frame heat exchanger consist of metal plate which container hole, Heat transfer occurs between the two fluids flow through these holes. The plate is fitted between a frame plate and a pressure plate, a bolt. The sealing washer is arranged on the board, to seal the channel and alternatively guide the flow into the channel. The plate number is determined by the physical properties of the fluid velocity, pressure drop and temperature program. In the crease to promote fluid turbulence, and the pressure difference of the plates to play a supporting role. For cooling and heating of liquid food products, pharmaceuticals and other in situ cleaning liquid and water and some applications of the pasteurization.

    Special requirements, temperature can reach 250 ℃

    item model BRO.05-3 BRO.1-4 BRO.2-5
    A single heat exchange area ㎡ 0.05 0.1 0.2
    Cooling capacity L/H 700 1500 2500
    Steam pressure Mpa   0.4-2
    Working Temp ℃ 120-160 120-160 120-160
    Hole dia mm 38 60 75
    Pipe dia mm 28 38 46
    heating piece   60 40 25
    Heat exchange area ㎡ 3 4 5

    Frame heat exchanger
    This unit is a sheet metal has a corrugated shape by a series of overlapping and into a new type of high efficient heat exchanger. Thin rectangular channel is formed between the various plates, heat exchange by half. Plate heat exchanger is an ideal heat exchange equipment for liquid - liquid, liquid - vapor. It has the characteristics of high heat transfer efficiency, small heat loss, compact structure, small occupation area, convenient installation and cleaning, wide application, long service life etc.. In the condition of the same pressure loss, the heat transfer coefficient is 3-5 times higher than in the heat exchanger tube, area of heat exchanger 1/3, heat recovery rate can be as high as 90%
×
×
