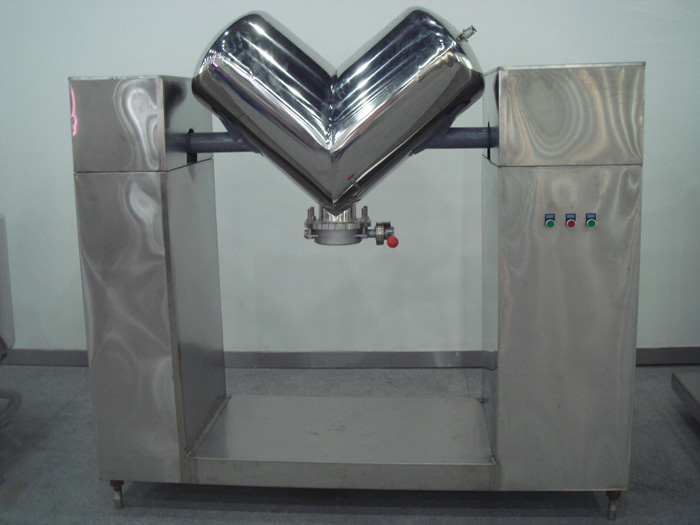

• QMJ-V type mixer
  •   hot:1080

  • Application

       This machine is used for pharmaceutical, food, chemical and other industries on the dry material mixed with powder.

    Work principle

       Unique structure of mixing cylinder, high mixing efficiency, no dead ends, with stainless steel tube inner and outer wall, polishing, beautiful appearance, wide range of mixing.

    format(m3) Max loading(L) speed
    r.p.m    		 power(kw) dimension(mm) N.W.(kg)
    0.005 2 15 0.095 650×400×600 25
    0.05 20 15 0.37 950×430×1000 120
    0.15 60 18 0.75 1300×600×1080 250
    0.3 120 15 1.5 2270×750×1930 450
    0.5 200 15 1.5 2350×800×2300 550
    1 400 12 2.2 3050×1650×2700 850
    1.5 600 10 3.0 3343×1650×2980 1020
    2 800 10 4.0 3820×1900×3480 2040
    2.5 1000 8 5.5 3990×1900×3480 2200
    3 1200 8 7.5 4100×2150×3600 2500

×
×
