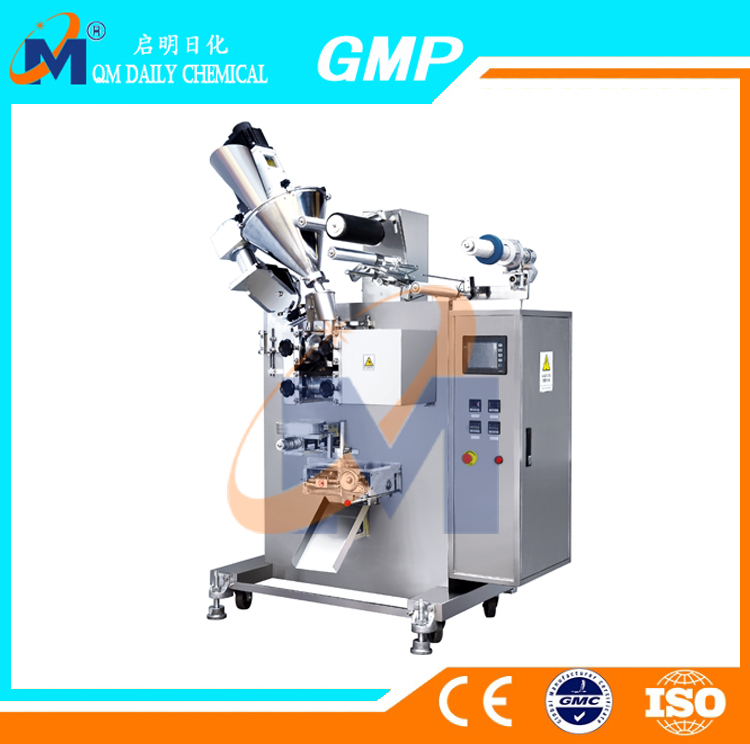

  • QM-60BK-2  packing Machine

    1.Application
          The sachet packing for tea granule, strip tea, original tea, pu’er tea
    2. feature

    l  back seal
    L  Auto Seal Sachet, Dosing, Filling, Sealing, Cutting, Count, Also The Printing Batch No Is Up To Your Request

    L Adopt Advanced Microcomputer Control , Stepper Motor Driver Control Sachet Length，Stable Performance, Easy To Adjustment, High Accuracy.
    With Intelligent Temp Control Meter, Pid Adjust, Ensure The Temp Difference With 1℃

    3、Model :QM-60bk(Granule)QM-60bf(Powder)

    Qm-60bj(Paste)Qm-60by(Liquid)

    4. Package Material:Polypropylene/ Polyethylene,Aluminum Foil/ Polyethylene，Polyester Fibre/ Aluminizing/ Polyethylene, Nylon/ Enhanced Polyethylene,Paper/
    Polytene


    5. Technical parameter

    Sachet size Width:30-140 mm
    length:30-180 mm
        Capacity: 30-60 sachet/min
    Filling volume 50-500 ml
    Power supply: One phase
    220V/50HZ/ 1.9KW

    Weight 400KG
    Dimension
    （L×W×H）    		 900×700×1700mm

×
×
