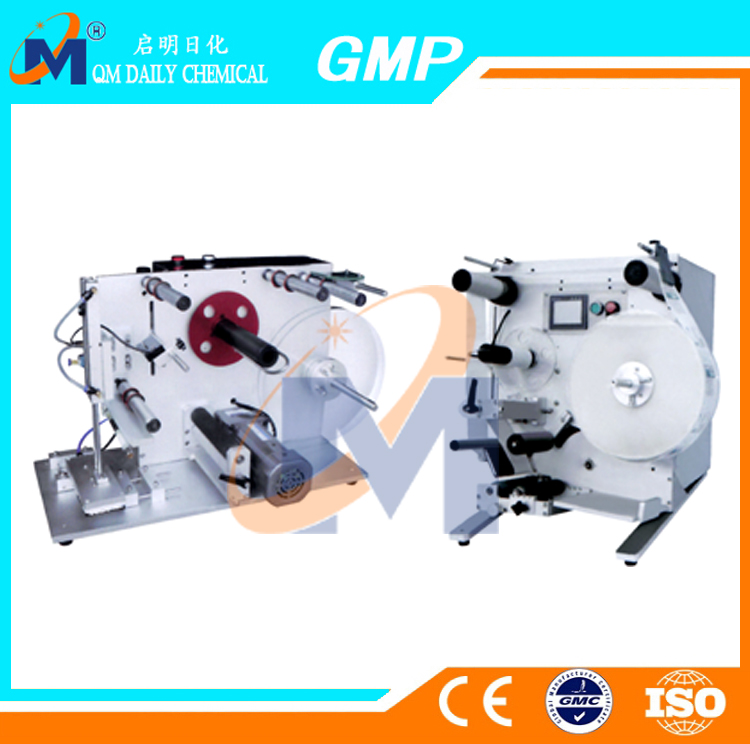

  • QMTB-800
    Technical parameter
    1.    bottle scope ：outer dia 20-140mm，h 20-300mm。
    2.    label scope:   L: 10-350mm   W: 10-150mm。
    (transparent label need transparent sensor)
    3.    capacity: 10-40 pcs/min (depends on label and worker)
    4.    label precision:±1mm
    5.    power supply: 220V /50Hz。
    6.    power: 0.1 kw
    7.    air supply: 0.6-0.8MPa
    8.    roll: bore size: 76mm, max external diameter: 300mm
    9.    optional item:  coding machine


    Configuration
    1.      PCU: Germany Siemens small PLC
    2.      Label sensor: Germany LEUZE
    3.      Label motor: China famous A-C dynamo
    4.      Bottle sensor: Germany LEUZE
    5.      Electric relay: France Schneider
    6.      The exposed parts: Stainless Steel 304, with anodic oxidation surface treatment
            High strength aluminum alloy and 45# steel, chrome plated, engineering plastics
    7.      Pneumatic components: China famous brand

×
×
