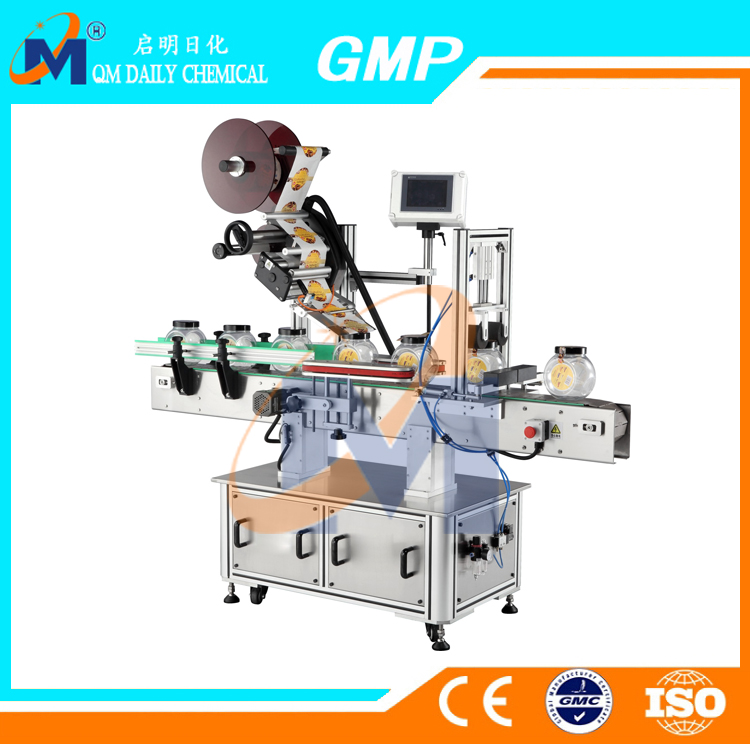

  • QMLM --3   Labeling machine
    1、Construction of machine
    Panasonic 750W ultra-small inertia servo motor, Panasonic servo amplifier, Delta converter, Taiwan speed motors,
    Siemens Programmable Logic Controller (PLC),Taiwan color human-computer interface ( Operating interface in English and Chinese)
     SICK label sensors from German, KEYENCE electric eyes of checking object from Japan

    B： Mechanical part
    Conveyor institutions : 200w taiwan AC motor ,Frequency converter adjust the speed.

    Guide bottle institutions :double coordinates ,adjustable ,prevented scratching bar
    Bottle dividing institutions :taiwan motor,frequency control of motor spee
    Round bottle institution: particularly suitable for the whole high demanding paste; three-roller automatic orientation can greatly reduce the cone due to product labeling and other unknown factors that caused the error. (Which can be achieved with one label of round bottle any post, installing electric eye can achieve positioning stickers, one label can post all faces, two labels symmetric and positioning post etc.).

    2． Performance Characteristic：
    The whole design of labeling machine is reasonable, easy to operate, the flexibility to switch to different round bottle bodies, easy to change for customers , suit for most of the round bottle labeling requirements; extrusion between high elastic scraper and non-powered sponge , to ensure that no bubbles; machine used to strengthen the rigidity of the mechanical structure design, simple, generous and stable.
    Technical parameters
           220V  50 Hz  1200W
    Labeling speed：35 m/min
    Labeling accuracy： ±1mm
    Product diameter：30－100mm（can be raised according to the requirement）
    Label maximum diameter：350 mm
    Label inner diamter ： 76.2 mm
    Label maximum width ：10- 130mm
    Machine size ：L2000*W800*H1400(mm)
    Machine weight ： 150 kg


    Configuration table of the machine
    No. Name Quantity & Unit Supplier
    1 Colour touch screen 1set HITECH
    2 Servo motor 1set PANASONIC
    3 Servo driver 1set PANASONIC
    4 Frequency converter 1set DANFOSS OR USA
    5 PLC 1set GERMANY SIEMENS
    6 General label electric eye 1pcs SICK
    7 electrical eye of checking object 1pcs KEYENCE
    8 Main motor 1set WANSIN
    9 Variable frequency motor 1set Taiwan comminution
    10 Speed governing motor 1set Taiwan comminution
    11 Segmentation motor gear box 1set Taiwan comminution
    12 Bottle dividing gear box 1set Taiwan comminution
    13 Switch power 1set TAIWAN MINGWEI
    14 Scram switch 1set SCHENIDER
    15 FUSE 3pcs CNYH
    16 Aviation plug 1pcs CHINA
    17 Aviation plug 1pcs CHINA
    18 Aviation plug 1pcs CHINA
    19 Solenoid valve 1pcs TAIWAN AIRTAC
    20 FRL combination 1set TAIWAN AIRTAC
    21 Cylinder stator 1pcs SMC



×
×
