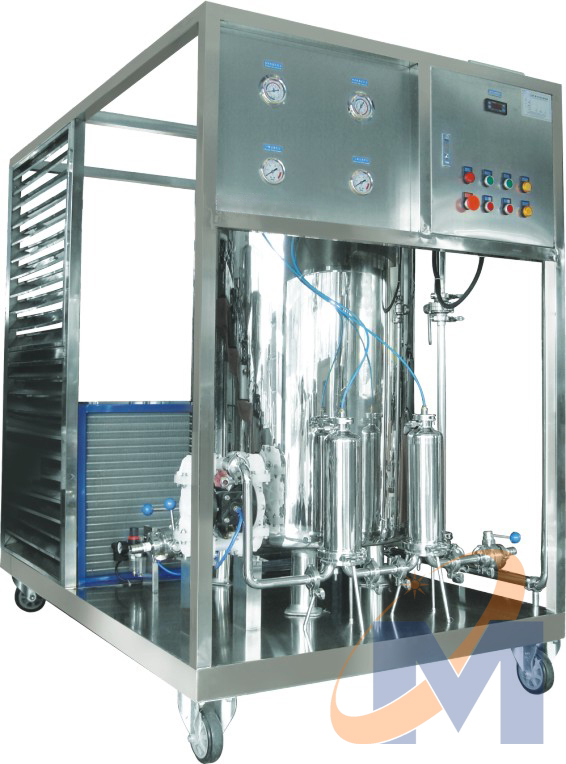

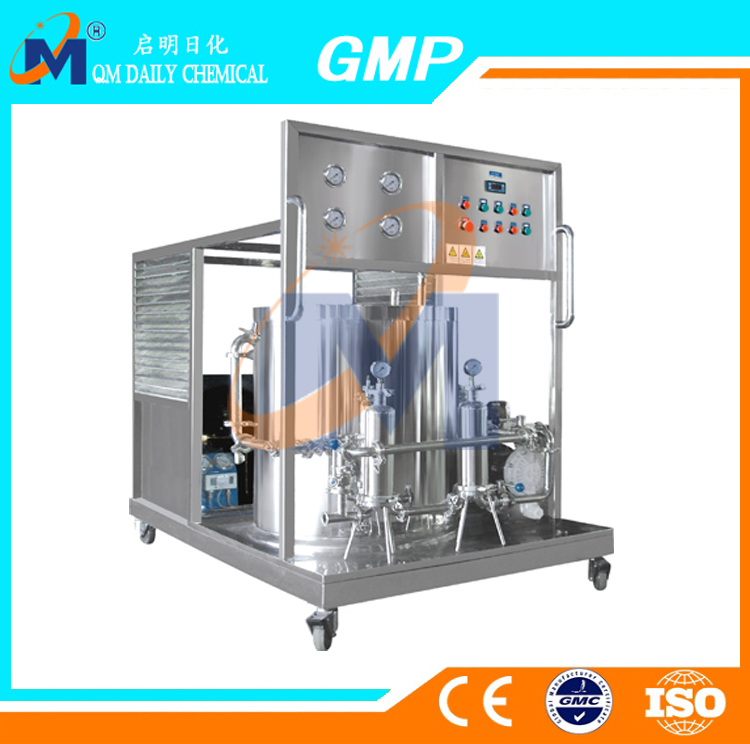

• Perfume refrigerator
  •   hot:2144

  • Application

    This unit can be used in the production of perfume, lotion, body lotion, cream, toilet water and other products.

    Function

    mix、cool、filter

    Feature

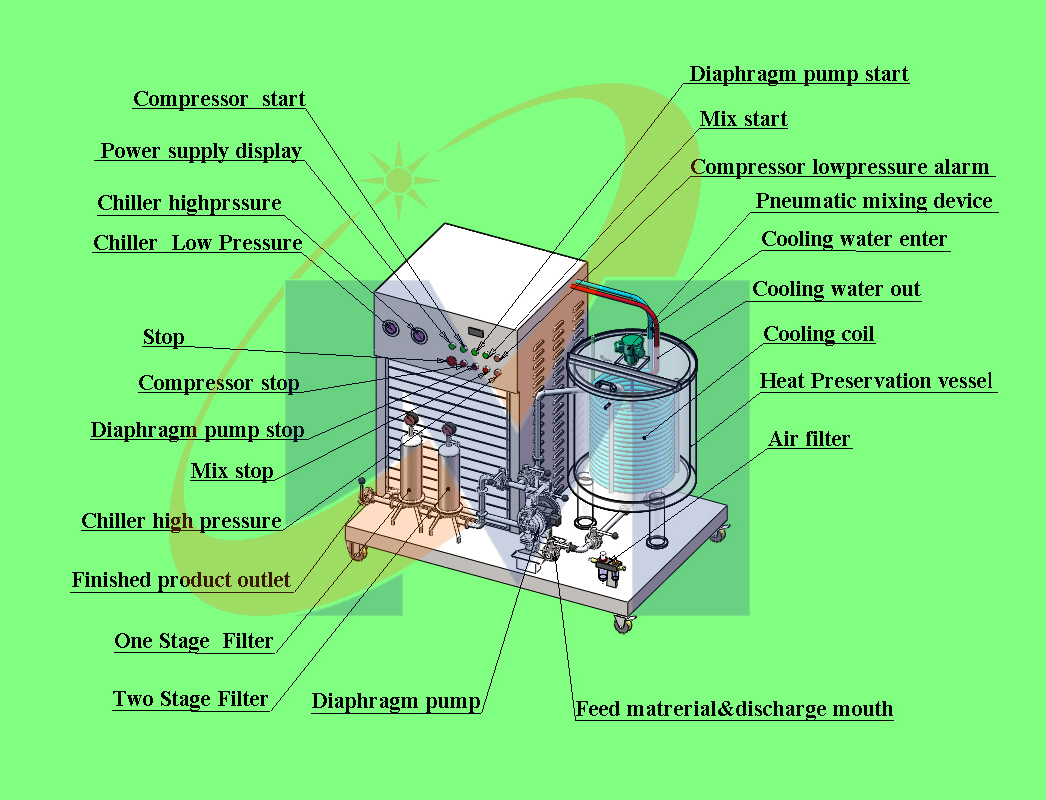

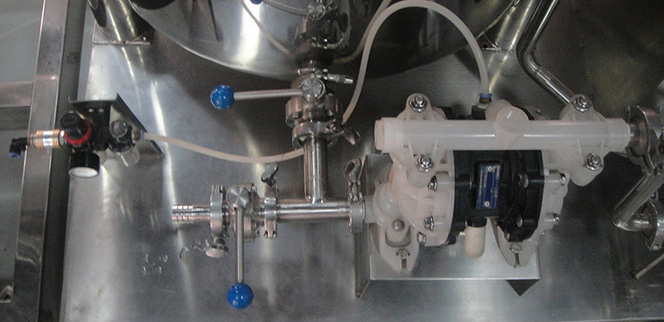

    1 diaphragm pump can be equipped with self suction feeding, without the need for manual feeding.

    2 the two-stage filter fineness of up to 0.2 m, can filter out impurities.

    3 the lowest refrigeration temperature of -5 DEG C, the temperature control is simple and easy to operate.

    4 circulation system, products can be recycled and filtering.

    5 wheel design, convenient to move.

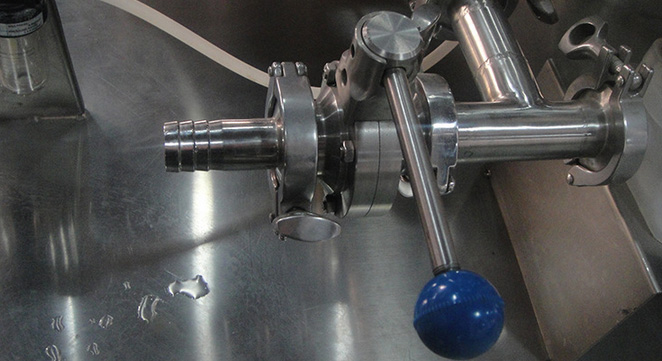

    6. The connection part of the clamp design, easy assembly and disassembly, convenient cleaning, maintenance.


    Technical Parameter
     Cooling HP  3P
     Tank capacity  200L
     Power supply  220V or 380V； 50Hz or 60Hz
     Power  2.2KW
     Max Freeze temp  -5℃

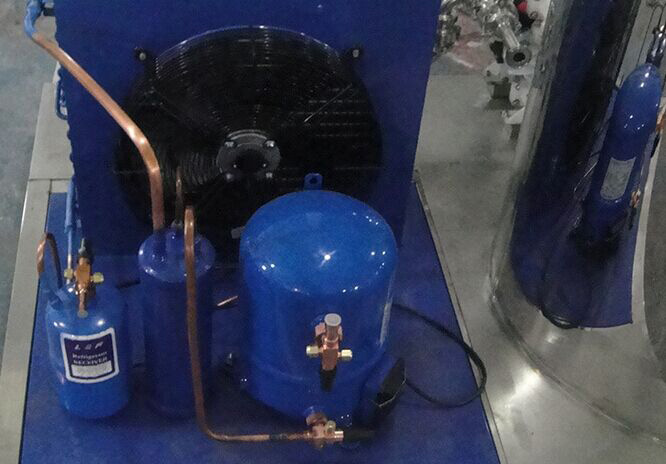

     Cooling media  R22
     Pressure  0.5-0.6Mpa
     One stage filter finess  1.0µm
     Two stage filter finess  0.2µm

    Notice
    1, the new machine before use, this machine has grounded three-phase 30A four core socket is reliable, and the frame ground;

    2, the new machine before use, the device is connected.

    3, water booster pump for the diaphragm pump, air source to drive it to run, for the single;

    4, in the freezer before the operation, check the chiller is high or low pressure protection device is adjusted to the appropriate parameters, pressure alarm is adjusted to 2.0MPA, low voltage alarm set to 0.7MPA. (a process completed by supplier)

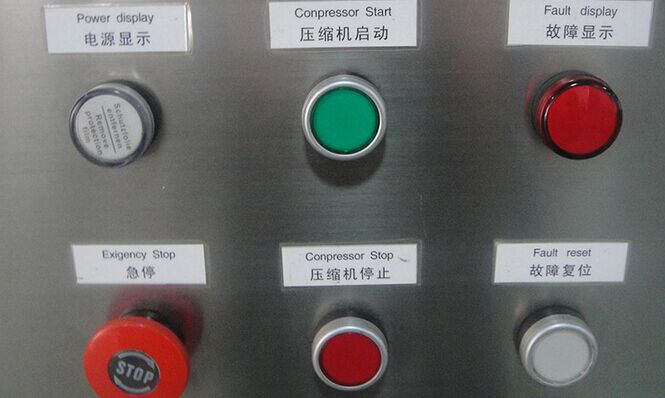

    5, in the freezer before the operation, check the "air-cooled" the direction of the fan, the check procedure: first start the panel "refrigeration switch" button, immediately stop "refrigeration switch" button, the running direction is the same visual equipment signs in the same direction, if not can not start the refrigeration unit, otherwise damage to the refrigeration unit, can be exchanged through the power line into the line direction.

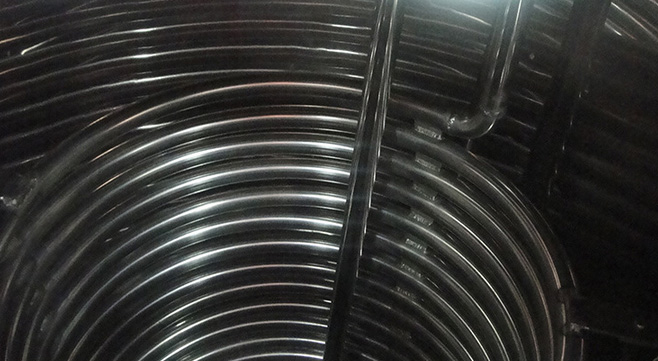

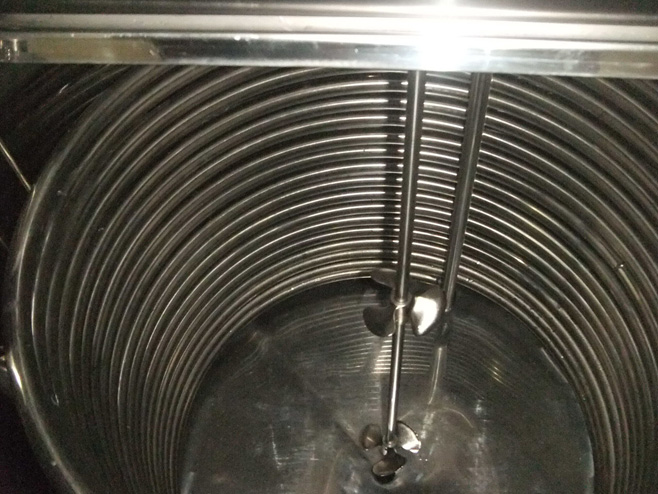

    6.Before starting, cooling tank with sufficient material, otherwise the cooling coil in the absence of material contact condition, will cause the refrigeration unit load increased to generate fault.














×
×
