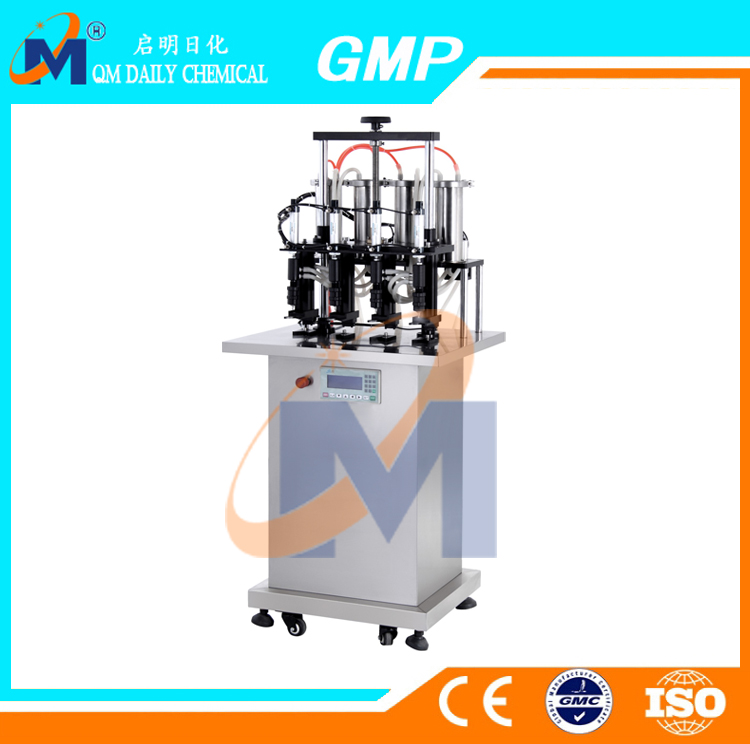

  • QMSZ 4 nozzle vacuum filling machine


    一、application
       For the toilet water, perfume and other water material filling. This machine adopts vacuum, filling fixed liquid surface, having four heads and six heads and two kinds of specifications. According to user needs, can provide proof type.

    二、Feature

    1, the negative pressure suction filling, the filling volume is measured according to liquid level.

    2, equipped with casters, mobile convenience.

    3, and material contact parts are made of 304 stainless steel and surface.

    4, suitable for plastic bottles for glass bottle or vacuum bottle is not easy to deform.

    5, adjustment, operation, convenient repair

    三、work principle
    The four open source for filling bottles were placed just below the filling head, is now open the vacuum generator, vacuum generator in the back feeding bottle and bottle feeding a partial sealed environment, resulting in a partial vacuum (pressure). Design of two channel, a material inlet feeding, only when the external pressure is greater than the material, the bottle pressure due to the pressure difference, the material through the feed tube into the feeding bottle. When the filling quantity, namely the level reached the discharge pipe, the external pressure is less than the feed back in the bottle pressure, or due to the pressure difference, to fill the excess material in the bottle through the discharge pipe into the back of the bottle feeding, so as to ensure the material in the bottle of liquid level.

    Technical parameter （one vacuum generator）
    1 the diameter of nozzle 1.5mm

    2 exhaust 60L/min

    3 compressed air consumption 100L/mim

    4 to achieve a vacuum degree of 57-KPa

    5 compressed air pressure 5kg/cm2

    Weight： 63kg
    Power：0.15kw
    Power supply：220v
    Feature
    1.      This machine adopts compressed air driven, so it is particularly suitable for use in a proof and damp environment, with a high degree of security
    2.      Due to the adoption of pneumatic control, and the use of mechanical positioning, so the filling precision is high, the accuracy can be controlled within 1%
    3.      The screw rod, the counter, the adjustment of filling volume is accurate, and can be directly reflected in digital form
    4.      In case of need to stop, just press the emergency stop switch, the piston automatically return to the initial position, filling stop
    5.      The equipment failure rate is extremely low


    Pls note: This machine can choose customized filling capacity, maximum filling 5L, suitable for soy sauce, vinegar, wine, oil, pesticide, shampoo, shower gel, hand washing liquid containing granular liquid, semi fluid materials

     Technical Parameter
    model QMGZ-200 QMGZ-500 QMGZ-1000 QMGZ-2500 QMGZ-5000
    Fill volume 5-120ml 25-250ml 50-500ml 100-1000ml 300-5000ml
    ideal fill volume 5-120ml 25-250ml 50-500ml 100-1000ml 300-5000ml
    Air supply 4-6kg/cm2 4-6kg/cm2 4-6kg/cm2 4-6kg/cm2 5-6kg/cm2
    Speed 0-25
    pcc/min    		 0-25 pcc/min 0-20
    pcc/min    		 0-15
    pcc/min    		 0-10
     pcc/min
    Precision 1% 1% 1% 1% 1%
    Weight 35kg 35kg 35kg 35kg 45kg











×
×
