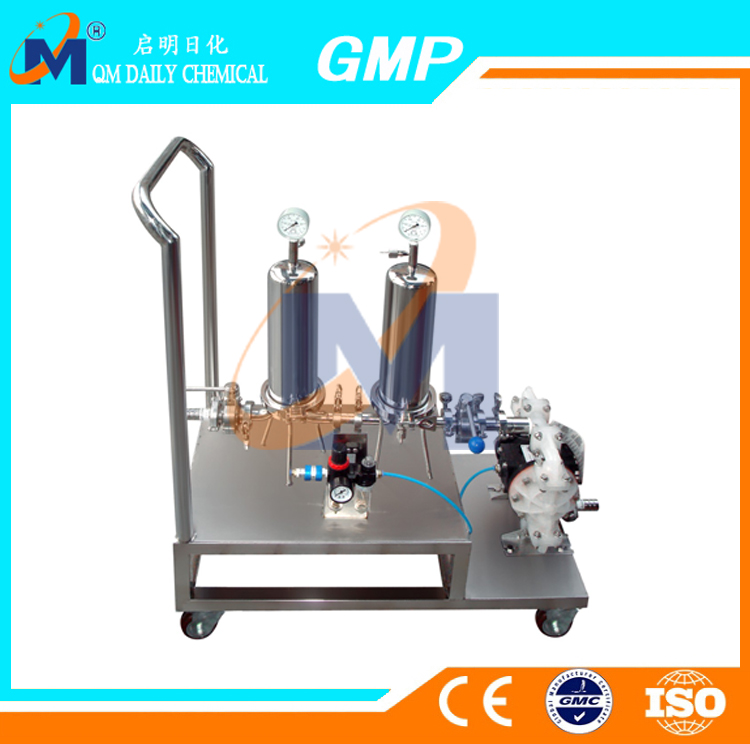

• Mobile filtration car
  •   hot:1305

  • Usage
     This product is the latest product developed by our company is specialized in cosmetics, perfume and other water after freezing in liquid clarification filtration; filtration is an ideal equipment for cosmetics factory lotion, perfume.

    This equipment is the main material in the pot using high-quality SUS304 stainless steel production, the volume of 350L, the inner layer thickness is 2.5mm, the thickness of the outer layer of 2mm jacket insulation. With the USA import Yum de 10m3/h pneumatic diaphragm pump as a source of pressure, pressure filtration.

    Maneurop refrigeration unit imported from France 3P, pot made of titanium alloy cooling coil.

    Circulating cooling system adopts 304 stainless steel sanitary polished fittings, quick install connecting way, convenient installation, disassembly and cleaning.

    Supporting the use of two polypropylene microporous membrane (0.2um, 1um), are widely used in the cosmetics industry, research institutes, hospitals, laboratories and other units of small amounts of liquid clarification and filtration, or micro chemical analysis, convenient and reliable.

    The equipment control box frame are made of 304 stainless steel.

    The equipment has the advantages of convenient operation, stable performance, compact structure, small footprint advantages, is widely used in cosmetics, perfume, cosmetics industry: water extract

    Manufacturing industry: oral liquid, liquid and all kinds of transfusion

    Food industry: wine, beverage etc.

    Notice
    Model 3P 5P 10P
    Power supply 380V/50HZ 380V/50HZ 380V/50HZ
    Power 2.2KW 3.75KW 7.5KW
    Freeze temp -5—-15℃ -5—-15℃ -5—-15℃
    Freeze media R22 R22 R22
    Air supply 0.5-0.6MPa 0.5-0.6MPa 0.5-0.6MPa
    Filter pressure 0.2MPa 0.2MPa 0.2MPa
    One stage filter 1.0um 1.0um 1.0um
    Two stage filter 0.2um 0.2um 0.2um
×
×
