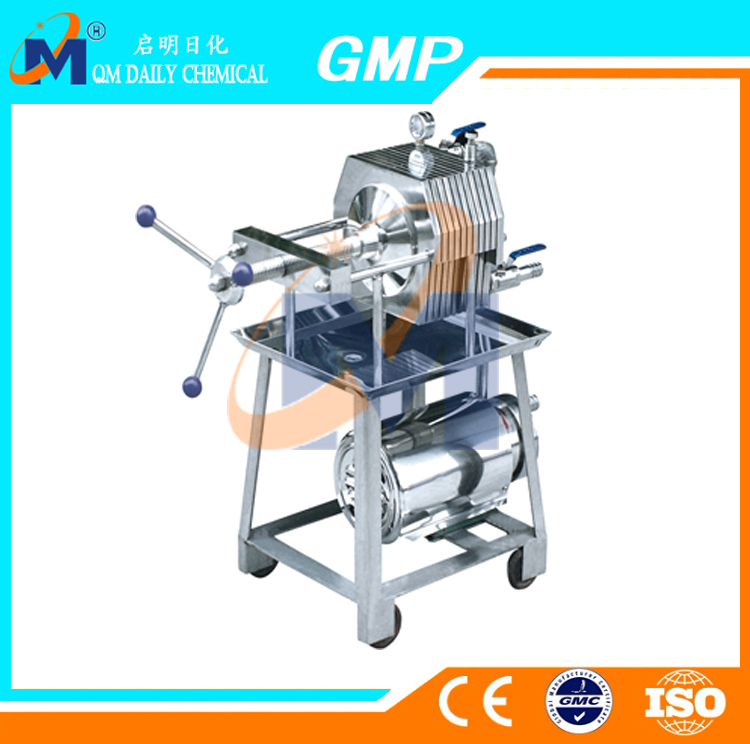

• Perfume filter device
  •   hot:913
  • The stainless steel filter is in below the concentration of 50% with low viscosity, containing less slag liquid as airtight filtering to achieve purification, sterilization, clarification, fine filtration, semi fine filter directly using microporous membrane, without microporous membrane filter can achieve aseptic filtration). The machine has big filter area, large flow, the applicable scope, so in the pharmaceutical, chemical, food and other industries have widely use, application in pharmaceutical injection liquid filtration, the effect is very good.


    Feature

    The machine in addition equipped motor, other parts are used 1Cr18Ni9Ti or 316L and high quality anti corrosion of stainless steel materials made, suitable for filtering various pH value of acid and alkali solution, the application of pressurized filter, low filtrate loss, good filtering quality and high efficiency. Small savings and use; the size of the filter part is composed of ten layer filter plate, filter area, circulation, and according to the filtered solution of different production process (initial filter, semi fine filter and fine filter), the replacement of different membranes, and according to customer's production flow may be appropriate to reduce or increase the filter plate number, suitable for the production, so the machine is a machine used for a wide range of characteristics of the filter plate adopts the plane thread mesh shape, advanced structure, no deformation, easy to clean, can effectively increase membrane life, thereby reducing the cost of production, the machine is equipped with stainless steel infusion pump and the matched motor, power consumption province. The base is arranged under the wheel, convenient operation, flexible movement, can be used for mobile use


     Technical Parameter

    Model: 150#
    Specifications：3T/H
    Capacity: 1T~3T/H

    Motor power: 1.1KW     （3 phase 380V）(if change 220V, then need 260 extra cost and 3 or 4 days more)

    Filter pressure: ≤0.2MPa

    Filter area：0.06M2

    Filter plate size:≤100mm

    Layer: 10





×
×
