• Manual filling machine
  •   hot:1089

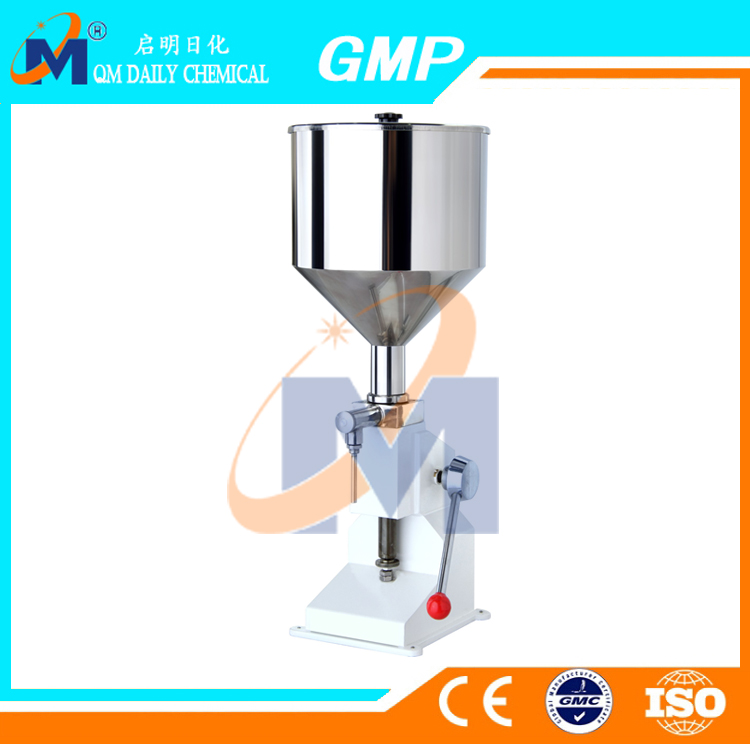

  • Manual Filling Machine Model：GMT-F
          GMT-F Manual filling machine adopt The piston type structure, can be 0-50 grams of quantitative filling of liquid, paste and other materials. Filling can be liquid, liquid food, oil, shampoo, shampoo, cream liquid, paste having liquid filling machine function. Applicable to the pharmaceutical, cosmetic, food, pesticides and special industries, can also be used for quantitative filling and sealing the hose, is the ideal paste liquid filling equipment.

    Feature
    The machine has the advantages of simple structure, convenient for manual operation, without the need of any energy.

    With the adjustment of filling volume device knob, quantitative feeding, filling volume and filling speed can be controlled manually.

    Material contact parts are made of 316L stainless steel, suitable for use with the medium of acid and alkali, food production, medicine hygiene requirements.

    This machine hopper capacity of 10 kg, the user can according to need to set the filling capacity.

    Application：
    1.  cosmetics industry: skin care cream, shaving cream, shampoo, Cleansing Cream, nutrient dense, detergent, shampoo, essence, moisturizing cream, hand cream

    2.  daily cosmetic：
    The washing liquid, liquid soap, toilet cleaner, automotive glass of water

    3.  The pharmaceutical industry:

    Latex, emulsion, ointment (ointment), syrup, oral liquid, etc..

    4.  Food Industry
    Soy sauce, cheese, nutrient solution, baby food, chocolate, sugar, etc.

    5.  The chemical industry:

    Latex, paste, paint, paint, soap products, resin, adhesives, lubricants etc..


    Technical Parameter

     Operation  Manual
     speed  20-40 Times / minute
     Filling volume  5-50ml Taking water as an example
     Nozzle dia   4 mm,8 mm
     Filling precision  ±1%
    Hopper capacity  10 L
     Dimension  340×340×780 mm
     Weight  11 KG
     Feature
    1.      This machine adopts compressed air driven, so it is particularly suitable for use in a proof and damp environment, with a high degree of security
    2.      Due to the adoption of pneumatic control, and the use of mechanical positioning, so the filling precision is high, the accuracy can be controlled within 1%
    3.      The screw rod, the counter, the adjustment of filling volume is accurate, and can be directly reflected in digital form
    4.      In case of need to stop, just press the emergency stop switch, the piston automatically return to the initial position, filling stop
    5.      The equipment failure rate is extremely low


    Pls note: This machine can choose customized filling capacity, maximum filling 5L, suitable for soy sauce, vinegar, wine, oil, pesticide, shampoo, shower gel, hand washing liquid containing granular liquid, semi fluid materials

     Technical Parameter
    model QMGZ-200 QMGZ-500 QMGZ-1000 QMGZ-2500 QMGZ-5000
    Fill volume 5-120ml 25-250ml 50-500ml 100-1000ml 300-5000ml
    ideal fill volume 5-120ml 25-250ml 50-500ml 100-1000ml 300-5000ml
    Air supply 4-6kg/cm2 4-6kg/cm2 4-6kg/cm2 4-6kg/cm2 5-6kg/cm2
    Speed 0-25
    pcc/min    		 0-25 pcc/min 0-20
    pcc/min    		 0-15
    pcc/min    		 0-10
     pcc/min
    Precision 1% 1% 1% 1% 1%
    Weight 35kg 35kg 35kg 35kg 45kg











×
×
