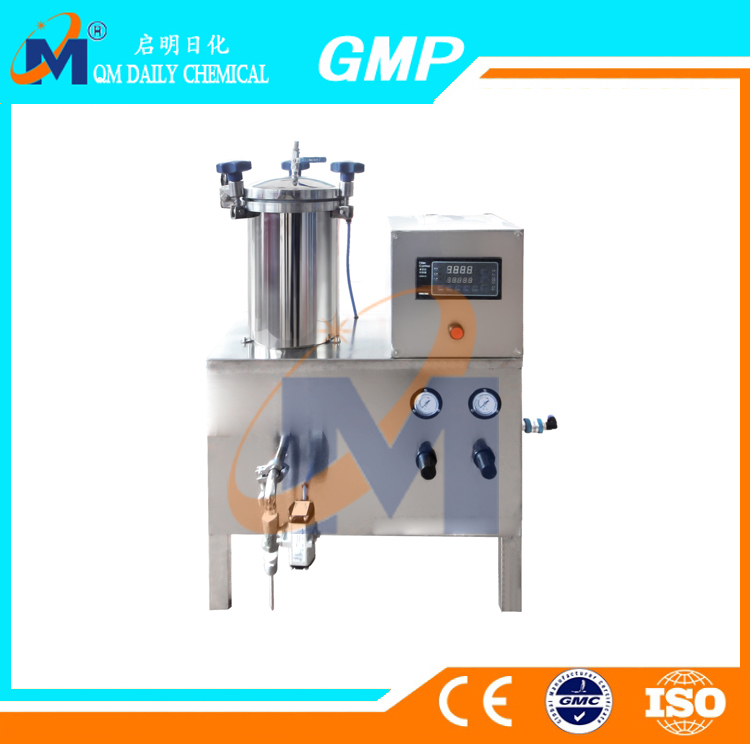

• Semi-automatic filling machine pressure
  •   hot:969

  • Feature
    1.      This machine adopts compressed air driven, so it is particularly suitable for use in a proof and damp environment, with a high degree of security
    2.      Due to the adoption of pneumatic control, and the use of mechanical positioning, so the filling precision is high, the accuracy can be controlled within 1%
    3.      The screw rod, the counter, the adjustment of filling volume is accurate, and can be directly reflected in digital form
    4.      In case of need to stop, just press the emergency stop switch, the piston automatically return to the initial position, filling stop
    5.      The equipment failure rate is extremely low


    Pls note: This machine can choose customized filling capacity, maximum filling 5L, suitable for soy sauce, vinegar, wine, oil, pesticide, shampoo, shower gel, hand washing liquid containing granular liquid, semi fluid materials

     Technical Parameter
    model QMGZ-200 QMGZ-500 QMGZ-1000 QMGZ-2500 QMGZ-5000
    Fill volume 5-120ml 25-250ml 50-500ml 100-1000ml 300-5000ml
    ideal fill volume 5-120ml 25-250ml 50-500ml 100-1000ml 300-5000ml
    Air supply 4-6kg/cm2 4-6kg/cm2 4-6kg/cm2 4-6kg/cm2 5-6kg/cm2
    Speed 0-25
    pcc/min    		 0-25 pcc/min 0-20
    pcc/min    		 0-15
    pcc/min    		 0-10
     pcc/min
    Precision 1% 1% 1% 1% 1%
    Weight 35kg 35kg 35kg 35kg 45kg
