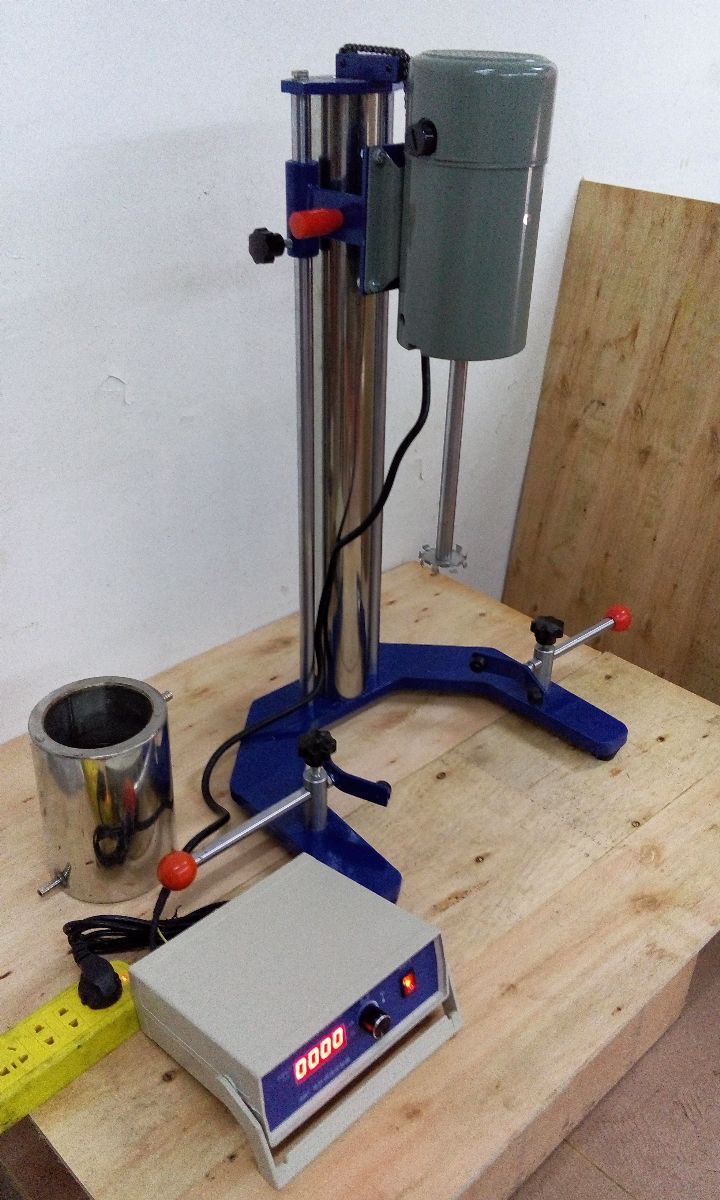

  •  QM400D high speed disperser

          QM400D series lab high speed disperser is high quality product base on international advanced technology

         This unit could disperse and mix material in one container. High efficiency, good mixing effect, easy to clean, manual lift, simple and convenient. Widely applied in factory, research institute, university,hospital etc for liquid material mixing.


    QM400D work principle


     The equipment adopts electronic constant speed control circuit, digital display the shaft speed, and is equipped
    with a grinding dispersion impeller and sand. To adapt to the need of different laboratory tests, and according to
    the direct calculation of mixing shaft speed, dispersion, sand grinding linear velocity and viscosity, and the
    relationship between the chemical reaction rate, provide technical data for the correct mass production.


    Dispersion head in high speed drive motor of the machine, rotary tangential line speed, the material in the
    centrifugal force produced under a huge, powerful hydraulic shear and high frequency mechanical effect, so that
    the fluid material withstand thousands of times per minute of the shear and high frequency mechanical effect, so
    as to achieve the efficiency of mixing, dispersing, homogeneous the effect of.

    This unit available for fluid material experiment

    Technical Parameter



    1、model：FS400D

    2、power：400W

    3、capacity：2～5KG

    4、material viscosity：below 10000cp

    5、speed：100-8000r/min

    6、mixing disperse impeller diameter￠50MM ￠60MM

    7、sand mill diameter ：￠60MM

    8、dimension （L×W×H）：450×400×800mm

    9、N.W.：25KG


×
×
