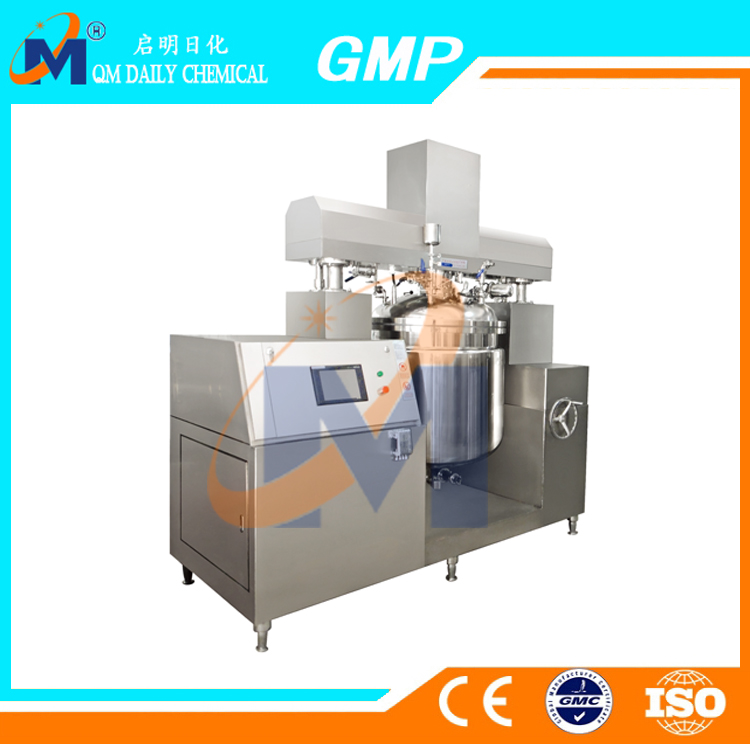

  • QMRJ-1vacuum emulsifying mixer

    Double emulsion machine design company, the technology has been
    very mature, the production efficiency is high, suitable for all kinds
    of cosmetics production. But also with cleaning function, a cooling
    heating function, material can be inhaled the main pot, and dissolve
    the emulsification, dispersion, fast homogeneous, with scraping stirring,
    the reaction heat into the pot, so as to achieve a stable, smooth, glossy product.

          Double cylinder emulsifying machine, stable lifting, safe, stable,
    is on the rise, the mixing is not rotating, so we do a lot of humanized design,
    you choose our company's products, is to choose a safe, stable, high quality,
    and quality service

    Model Capacity Mix power Homogenizer power vacuum Electric heating Mix speed Homogenizer speed
    QMRJ-500L 500L 4KW 7.5KW -0.09Mpa 18KW 0-80RMP 0-3000RPM
    QMRJ-1000L 1000L 7.5KW 15KW -0.09Mpa 27KW 0-80RMP 0-3000RPM
    QMRJ-1500L 1500L 11KW 18.5KW -0.09Mpa 36KW 0-80RMP 0-3000RPM
    QMRJ-2000L 2000L 15KW 22KW -0.09Mpa 54KW 0-80RMP 0-3000RPM
    QMRJ-2500L 2500L 15KW 22KW -0.09Mpa -------- 0-80RMP 0-3000RPM
    QMRJ-3000L 3000L 18.5KW 25KW -0.09Mpa -------- 0-80RMP 0-3000RPM
    QMRJ-3500L 3500L 22KW 27KW -0.09Mpa -------- 0-80RMP 0-3000RPM
    QMRJ-4000L 4000L 22KW 27KW -0.09Mpa -------- 0-80RMP 0-3000RPM
    QMRJ-4500L 4500L 27KW 30KW -0.09Mpa -------- 0-80RMP 0-3000RPM
    QMRJ-5000L 5000L 27KW 30KW -0.09Mpa -------- 0-80RMP 0-3000RPM


    Electric heating and steam heating is up to you.  Above data for reference only

    Professional 3 d figure







    Helical & Counter Mixing & Top Homogenizer


    This is a customer has ordered


    Stir the latest form






    The larger point








    1.In production practice





    2.Emulsion production practice






    3.Emulsification machine in a factory

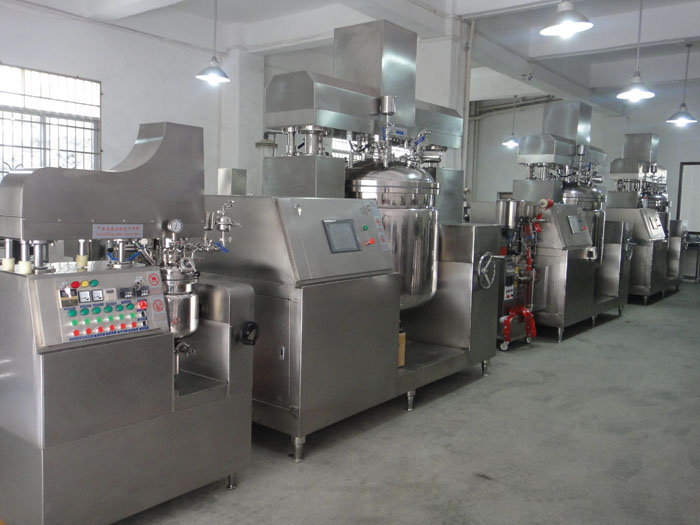

    Emulsification machine hall






    4.The factory practice





    5.A detailed picture of the emulsifying machine


    A》Operation panel





    B》The lid

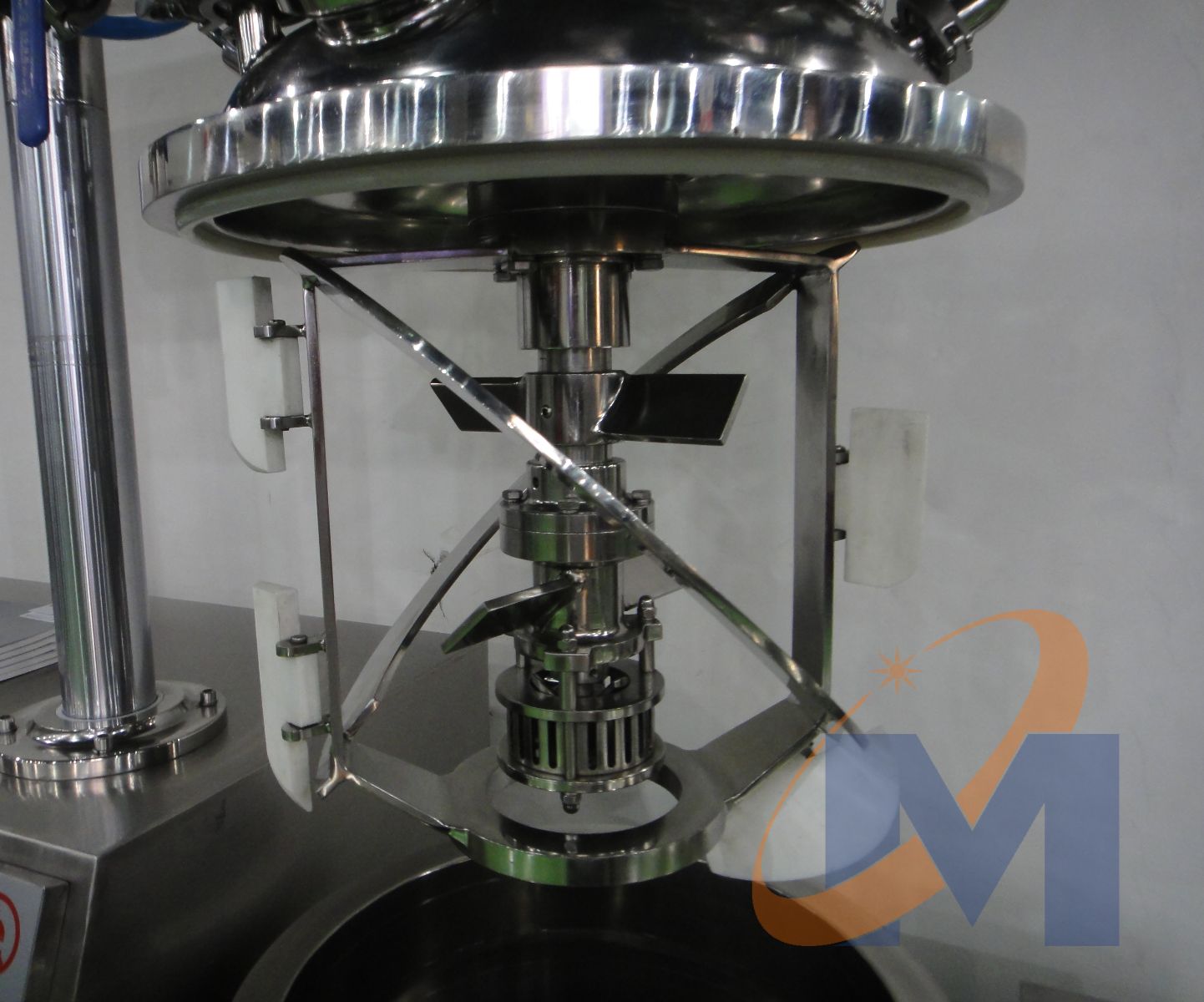

    C》Mixing structure

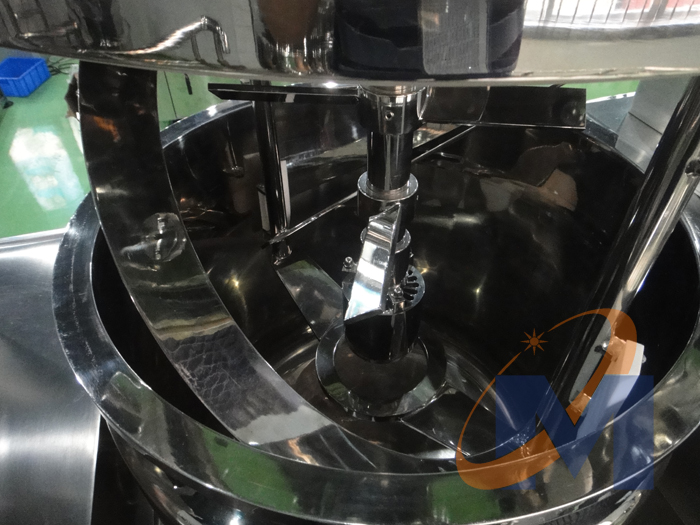

    D》Stir






    E》homogenizer







    F》Water pot and oil pot





    G》Connection pipe

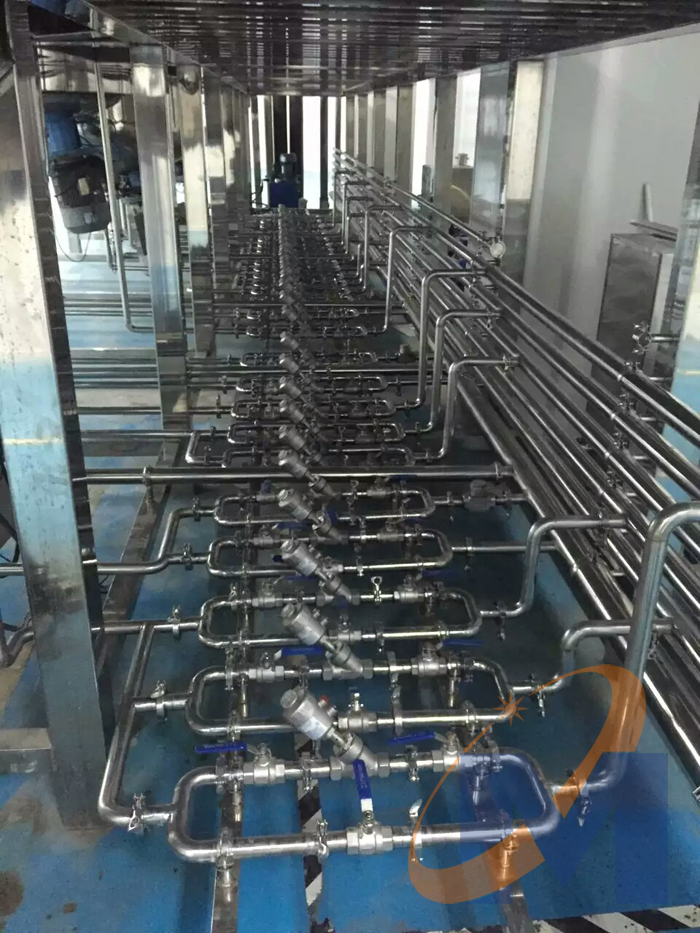

    The following is automated pipeline




    ​
    Automatic and semi-automatic control pipe can choose



×
×
