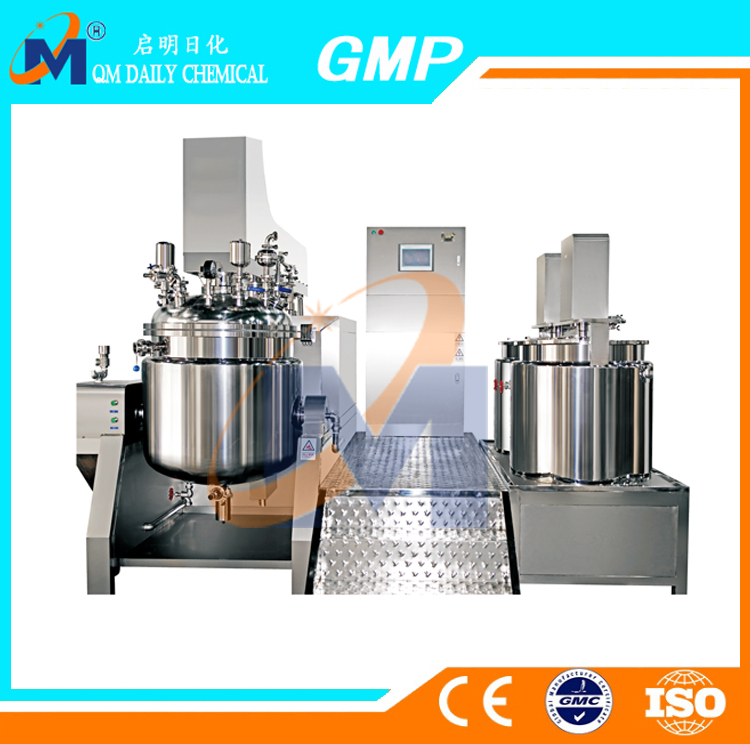

• QMSJ-1 vacuum emulsifying mixer
  •   hot:1180




  • QMSJ Series

      This unit is a kind of comprehensive water, gas, electricity,

    vacuum, pressure, heating, cooling, cleaning, in one of the machinery.

    High quality emulsifying machine, not only functional, but also a stable job,

    then each parts of machine emulsion machine normal work, the Division I,

    through continuous efforts, technology improvement, and in combination

    with the actual situation, has the perfect combination of superb technology,

    to create a stable work, lifting the emulsifying machine of good quality.

    Fixed type vacuum emulsification machine suitable for three-dimensional

    space is limited, or the volume is relatively large.

    Application

    1.     Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sun cream, Cleansing Cream, nutrient dense, detergent, shampoo, hair conditioner, hair cream, essence, moisturizing cream, hand cream, etc.

    2.     Daily chemical：The washing liquid, liquid soap, toilet cleaner, automotive glass of water

    3.     Pharmaceutical industry: emulsion, emulsion, cream (cream), syrup, oral liquid

    4.     Food industry: soy sauce, cheese, nutrient solution, baby food, chocolate, sugar, etc..

    5.     Chemical industry: latex paint, paste, saponification products, paint, resin, adhesives, lubricants, etc



    Helical & Counter Mixing & Top Homogenizer


    This is a customer has ordered


    Stir the latest form






    The larger point






    Technical parameters


    Model capacity Stir power Homogenize
    power    		 vacuum Electric heating Stir speed Homogenizer
    Speed
    QMSJ-10L 10L 0.55KW 1.5KW -0.09Mpa 2KW 0-80RMP 0-3000RPM
    QMSJ-20L 20L 0.75KW 1.75KW -0.09Mpa 3KW 0-80RMP 0-3000RPM
    QMSJ-50L 50L 1.5KW 2.2KW -0.09Mpa 6KW 0-80RMP 0-3000RPM
    QMSJ-100L 100L 2.2KW 3KW -0.09Mpa 6KW 0-80RMP 0-3000RPM
    QMSJ-200L 200L 3KW 5.5KW -0.09Mpa 9KW 0-80RMP 0-3000RPM
    QMSJ-500L 500L 4KW 7.5KW -0.09Mpa 18KW 0-80RMP 0-3000RPM
    QMSJ-1000L 1000L 7.5KW 15KW -0.09Mpa 27KW 0-80RMP 0-3000RPM
    QMSJ-2000L 2000L 11KW 18.5KW -0.09Mpa 36KW 0-80RMP 0-3000RPM

    Customized according to the actual situation, electric heating
    and steam heating. The volume includes optional.
    The above parameters are for reference only.





    Professional 3 d figure




    1.In production practice




    2.Emulsion production practice

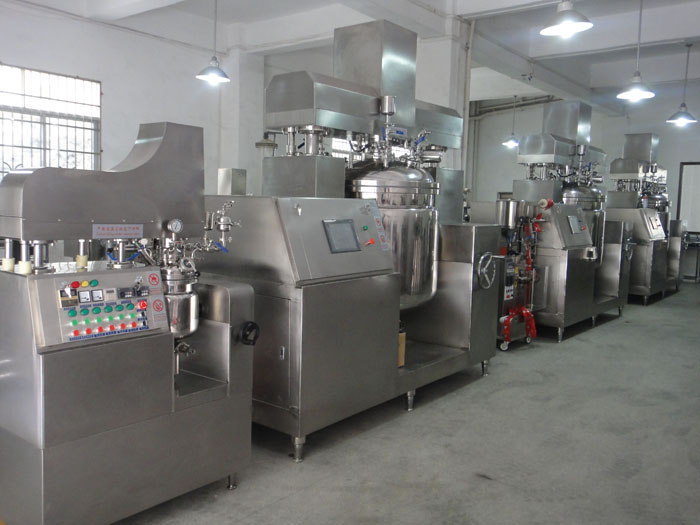

    3.Emulsification machine in a factory






    4.The factory practice





    5.A detailed picture of the emulsifying machine


    A》Operation panel





    B》The lid




    C》Mixing structure





    D》Stir






    E》homogenizer







    F》Water pot and oil pot





    G》Connection pipe





    The following is automated pipeline





    Automatic and semi-automatic control pipe can choose



×
×
