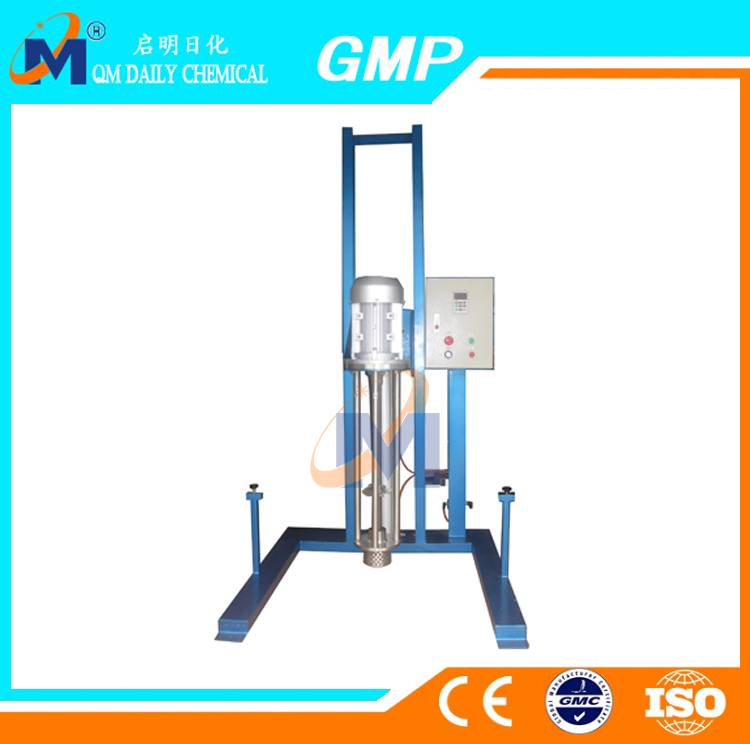

• Stand homogenizer
  •   hot:760

  • High shear homogenizer used to high effect, fast speed, mix evenly one phase material or more phase material into another phase material, pls note each phase material usually not mixed together.
        As the rotor high speeds mixing occur high line cut speed and high frequency mechanic effect which mixing solid phase, liquid phase,gas phase completely evenly

    High shear cut work process: under the centrifugal effect occurred by rotor high speed mixing, the material feeding into homogenizer head from two side, at the same time, the centrifugal effect drive material into the exact gap between stator and rotor.  The material be disperse and emulsified. The rotor line speed at least 15m/s and max be 40m/s.


     Application:
              Mixed syrup, shampoo, detergent, juice concentrate, yoghourt, sweets, mixed milk product, printing ink, ceramic glaze.




    Model Power Speed Standard Length Capacity Power supply
    QMD-100 3-4KW 0-3000RPM 750MM 100-200L 380/220V
    QMD-200 5.5-7.5KW 0-3000RPM 900MM 200-500L 380/220V
    QMD-100 11-15KW 0-3000RPM 1200MM 500-1000L 380/220V
    QMD-100 18.5-22KW 0-3000RPM 1400MM 1000-2000L 380/220V
