• Powder break machine
  •   hot:1033

  • Description

               Fully-stainless steel made, SUS304 material, meet GMP request, Universal powder break
    machine(Universal Stainless steel powder break machine is also known, grinder, food grinder, universal high-speed
    grinder, condiment grinder, multi-functional grinder, chemical mill, preparation grinder, such as. Our development and
    production of the new brand is a universal grinder with high quality 304 stainless steel production, supporting national
    standard motor.

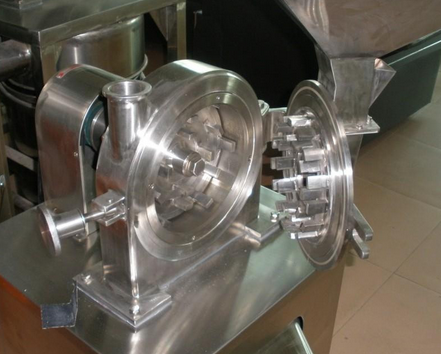

    Work principle

            This unit through the static and dynamic gear wheel high-speed operation, the material carries on the shear collision smashing. When the material reaches a certain fineness, screen after discharge. This machine belongs to the continuous feeding operation, the structure is simple and easy, the noise is small, the operation is simple..


    Available
    this unit belongs to general machine, and is suitable for the crushing of material in food, pharmaceutical, chemical and other industries..

    Range of processing
    Applicable to chemical materials, materials containing roots, branches and bulk materials, all kinds of oil amount of grain, grain and other rigid, brittle material.

    Special note: the metal is not crushed, especially strong and high viscosity material.
             This unit could add dust removal device or water cooling cycle device as customer like



    Technical Parameter

    Model 180 30 40 60
    Material All in SUS304 All in SUS304 All in SUS304 All in SUS304
    Power supply（V） 220/380 380 380 380
    Power(KW） 2.2 5.5 7.5 11
    Main shaft speed 4200 3800 3400 2800
    Fineness（目） 60-120 60-120 60-120 60-120
    capacity(kg/h) 10-50 100-300 160-800 500-1500
    dimension(mm) 450*550*900 600*600*1200 650*650*1400 1350*750*1680

      Attention:

    1．In the power supply of the machine, the power should be installed according to the power of the machine, the purpose of the machine is to overload the machine, and the power supply automatically when the current is too large, to protect the motor! 2 the machine when working to ensure that there is someone to look after. 3. The crushed material particles should not be too large, such as the case of boring machine (i.e., machine due to the load is too large to cause the speed is significantly slow down or stop running passively), should immediately cut off the power. 4 if the crushed particles are too large, it should be broken after the universal crusher, and then crushed by this machine.


    universal powder break machine (stainless steel dedusting mill water-cooling device for universal grinder, according to the user's special requirements and the crushed materials of special physical and chemical properties can be equipped with water cooling device. If be crushed material of low melting point, low ignition temperature and heat easily soft, sticky, resulting in decreasing grinding effect or cannot shatter, and even cause combustion, it is necessary to the crushing equipment equipped with water cooling device. Commonly used water cooling device is in the crushing cavity of the anterior and posterior wall were added a water sealing clamp, the flow of water or wells will continue to flow into the posterior wall of water pinch, then flows into the anterior wall of water pinch, again by the anterior wall of water clip back into the wall and the wall of the water outlet of the outflow. The purpose of the cooling device is to reduce the temperature of the chamber.!

    Friendship tip: 1 different seasons, different temperatures, different temperatures will have different cooling effect. 2 different heat generated by different materials, the temperature rise also different. 3 the lower the water temperature flowing into the water cooler, the better the cooling effect is.. 4 different materials, the melting point of light is different, the user must have full understanding and grasp of the crushed material. 5 water cooling device with additional reservation.



×
×
