  • Feature

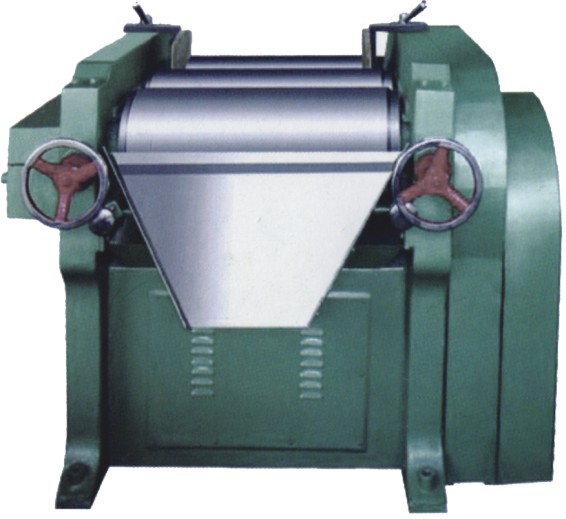

    This machine is mainly used for all kinds of paint, ink, plastic, pigment, food and other paste materials,
    especially in grinding and dispersion of high viscosity and size requirements of fine products. Roll is made
    of chilled alloy cast iron centrifugal casting, crystal phase closely, high strength, the surface has high
    hardness and wear resistance, and is provided with a cooling system. The factory also produces electric
    heating, steam heating type three roller grinding machine and granite roller

    The ceramic roller tube, never rust ~ various specifications of roller of three roller grinding machine.

    The machine by rotating the handwheel adjustment of the horizontal direction of the three roller between the
    gap and the roller surface mutual extruding bar and different speed friction to achieve the effect of
    dispersing and grinding.

    Technical Parameter
    model           unit QM260
    Roll diameter mm 260
    Roll work length mm 695
    Roll speed Slow roll 19
    Middle roll 55
    Fast roll 155
    Motor power kw 7.5
    Finished product u.m 3-18/3 times
    Reference efficiency kg/h 180
    Dimension mm 1650*1350*1100
    weight kg 2300
×
×
